Robust Gravel Driveway Grids Ideal For Driveway And Walkways

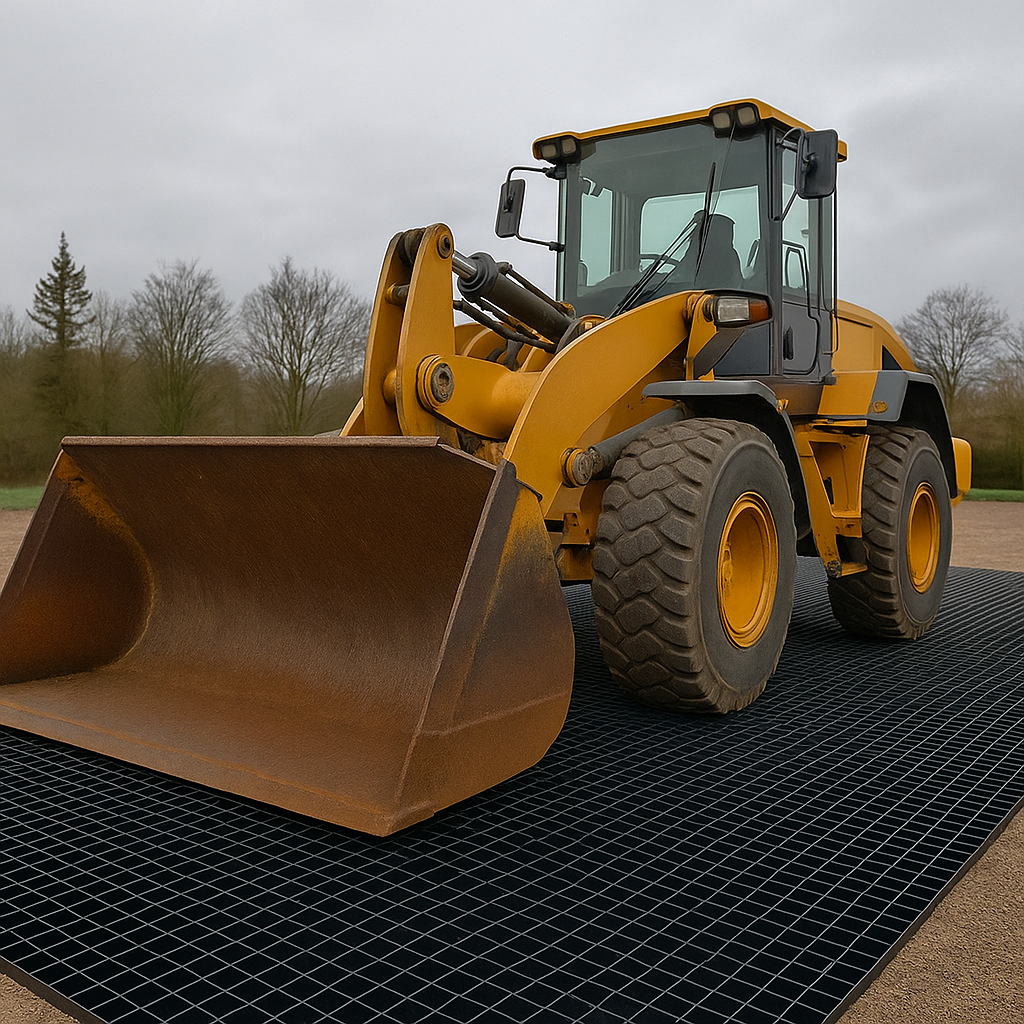

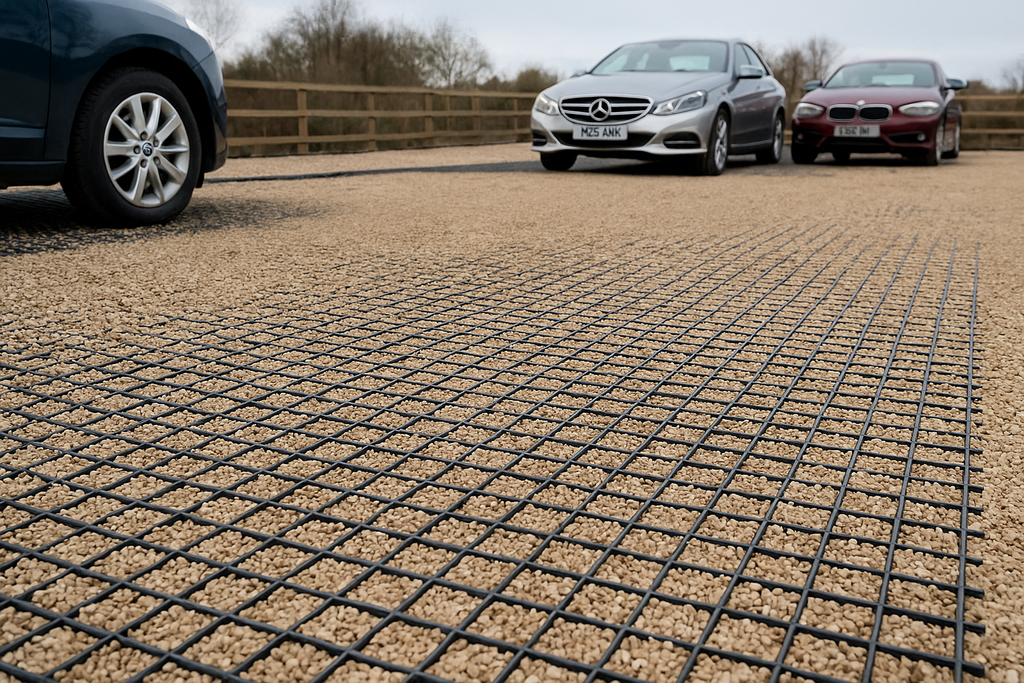

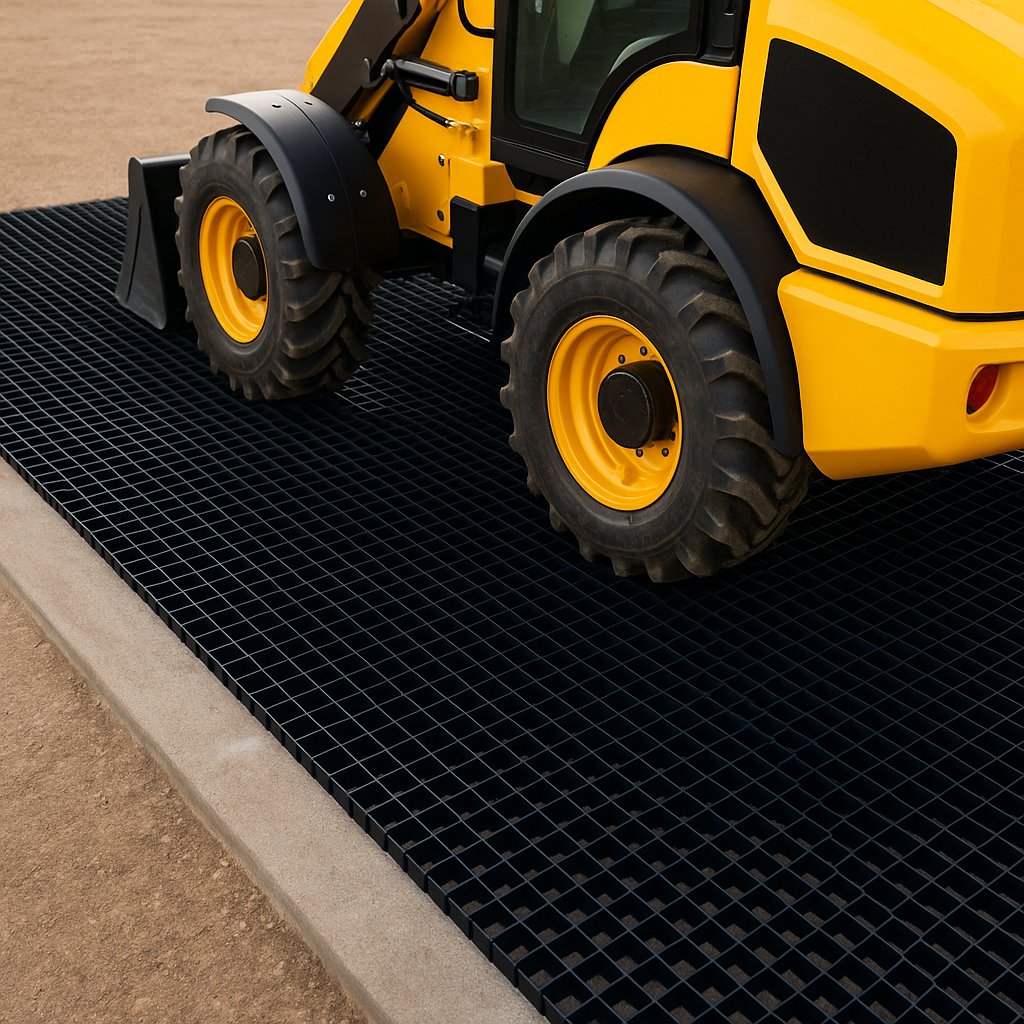

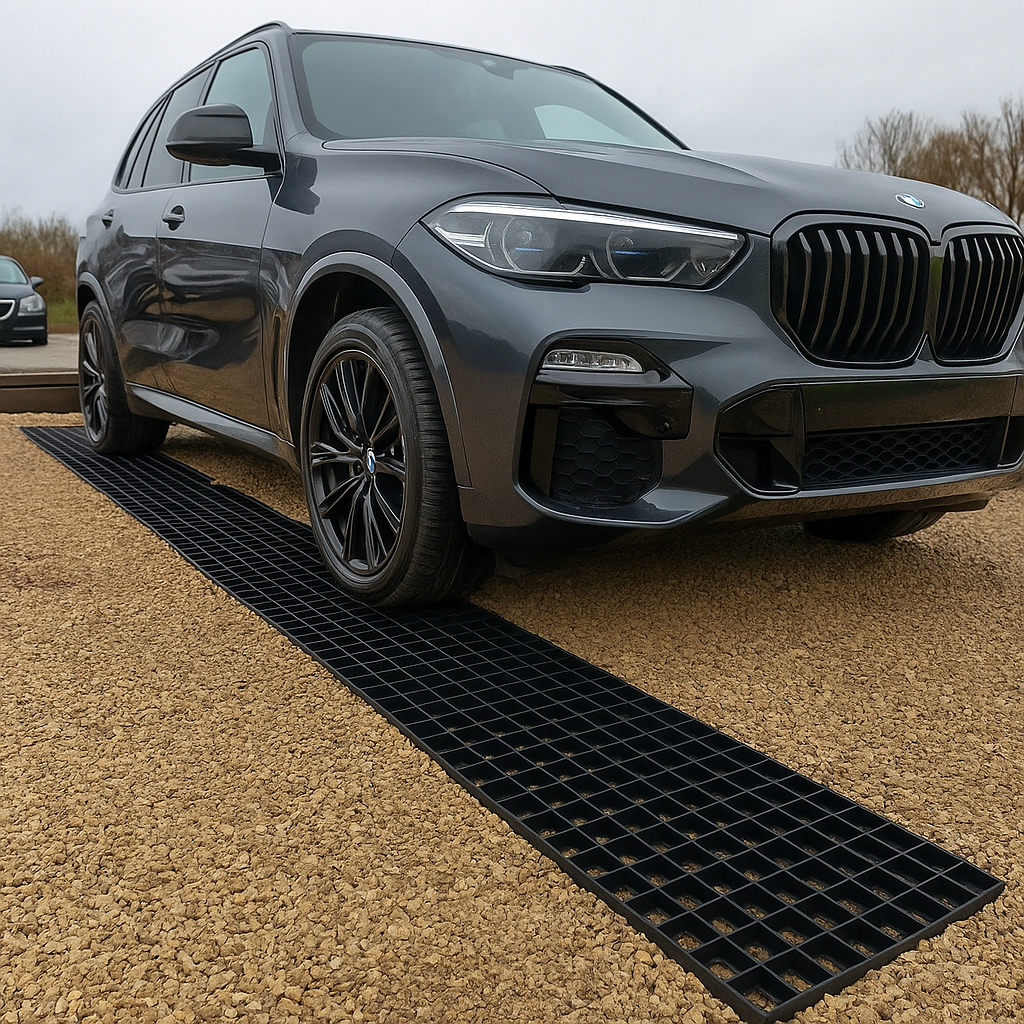

The Gravel Driveway Grids 40MM grid is tough and robust and can comfortably withstand vehicles in excess of 25 (tested) tonnes including cars, vans and lorries. They are suitable for various domestic to light industrial surface reinforcement applications (see our 'Other Information' section for other uses and applications).
The Gravel Driveway Grids is extremely tough and robust and, when tested, can comfortably withstand vehicles in excess of 25 tonnes including cars, vans and lorries. They are suitable for various domestic to industrial surface reinforcement applications (see our ‘Other Information’ section for other uses and applications).

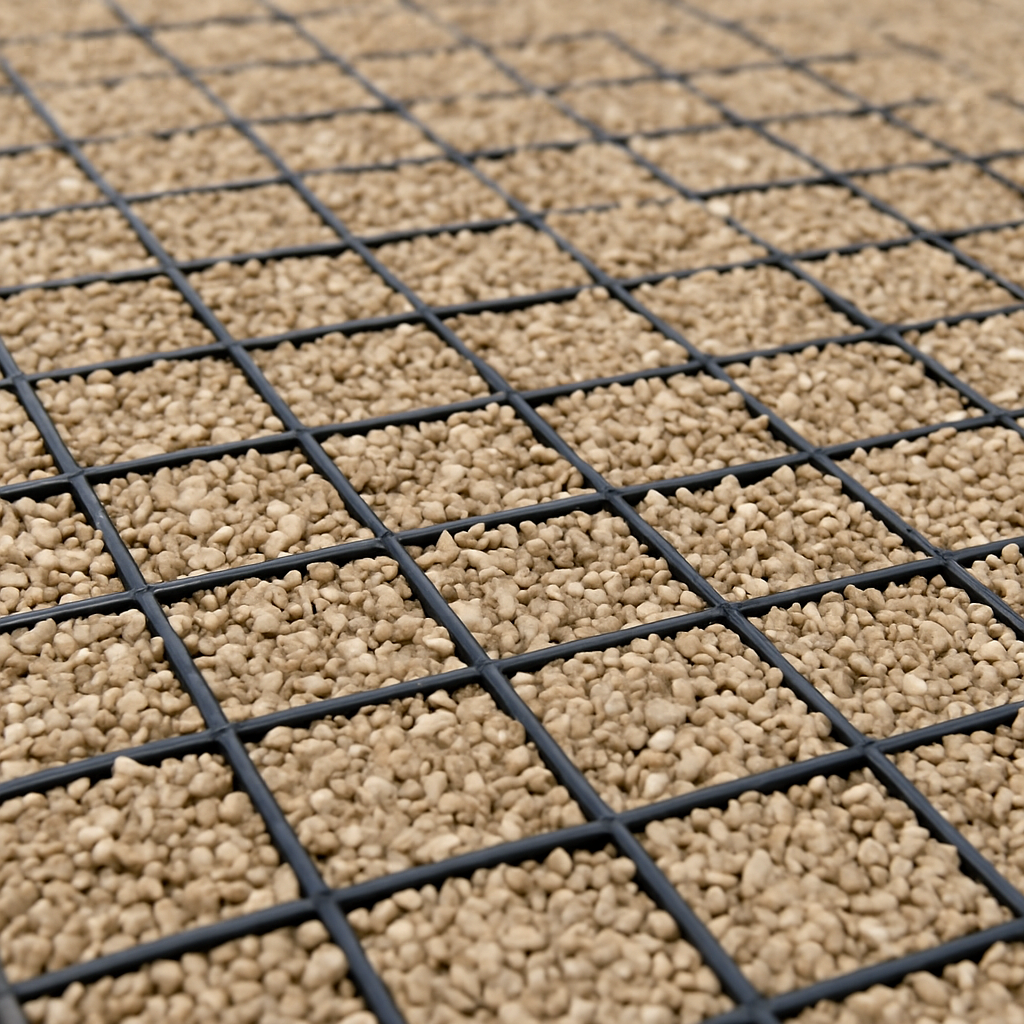

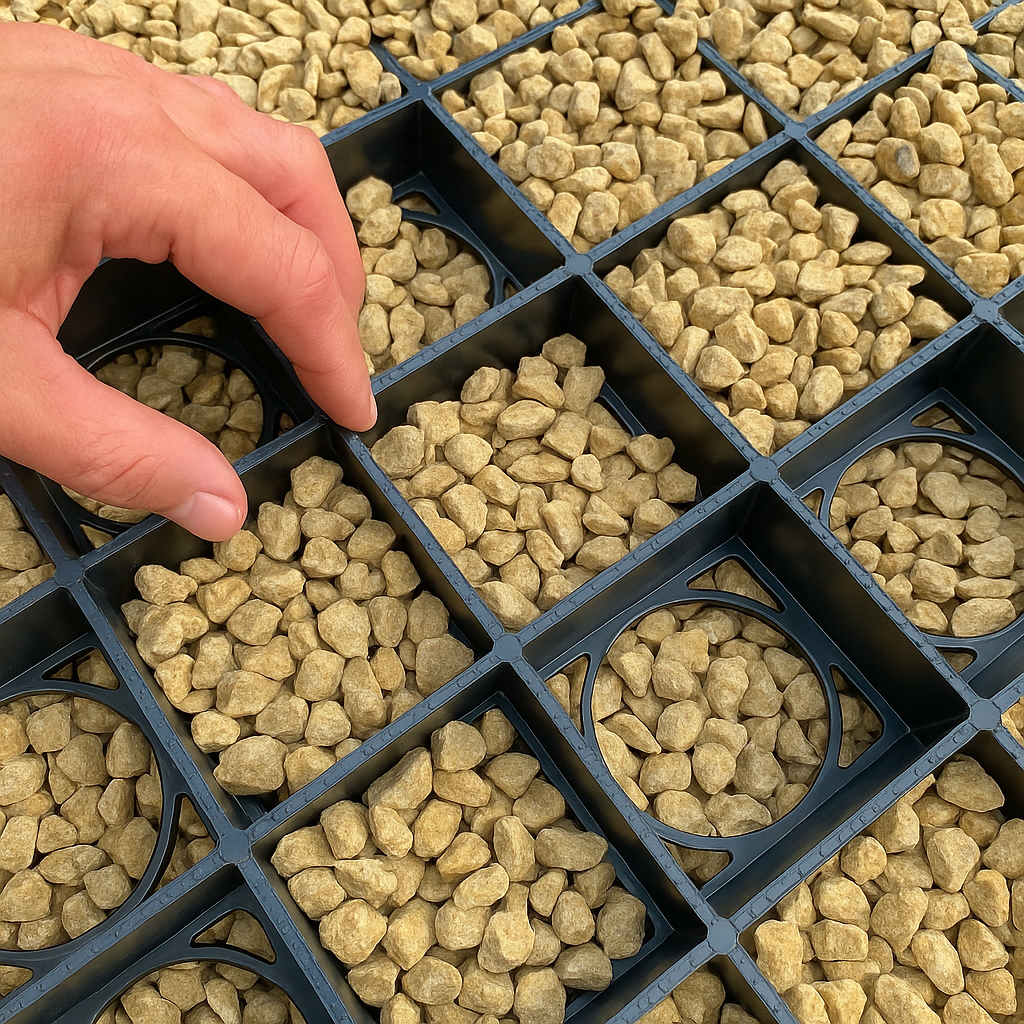

The open cell structure design of the Gravel Driveway Grids (x49 individual 70mm square pockets per grid) allows for neat gravel or grass finish.
Not only does the grids open cell structure provide extra walls of stability they also prevent lateral and downward migration and disruption of your chosen infill material.
For best results we would suggest to use a gravel size tolerance of 5MM to 35MM.
The Gravel Driveway Grids 40MM open cell structure prevents lateral migration and disruption of the infill material whilst still maintaining a neat and compact stable surface finish.
The Gravel Driveway Grids 40MM modular design means the system can be added too at any time. With a simple and easy lateral jigsaw like push-snap fixing.
The Gravel Driveway Grids 40MM is a high strength, UV stable, recycled, injection moulded plastic grid that is compression tested to a 'minimum' 500 tonne / SQM load test rating.
Dimensions 500 x 500mm
Deck Height 40mm
Rib wall thickness 3.5mm
Cell space openings 68mm x 68mm iregular squares
Weight/m2 5kg (based on current recycled plastic, there can be a slight variation
Number of decks per m2 4
Pallet capacity 240
Load Capacity Up to 500+ tonnes/m2
Axle Weight In excess of 25 tonnes - axle load
Gross Weight per palet 250 KG
Material - Recycled 100% UK Recycled - UV Stable Polypropylene / TPE Mixed.
Temperature Stability -50 to +90C
Filling The grids can be filled with a wide range of materials including soil - grass seed, gravels, stones etc
Environmental None toxic, chemically enert and reusable too which makes the driveway grids
